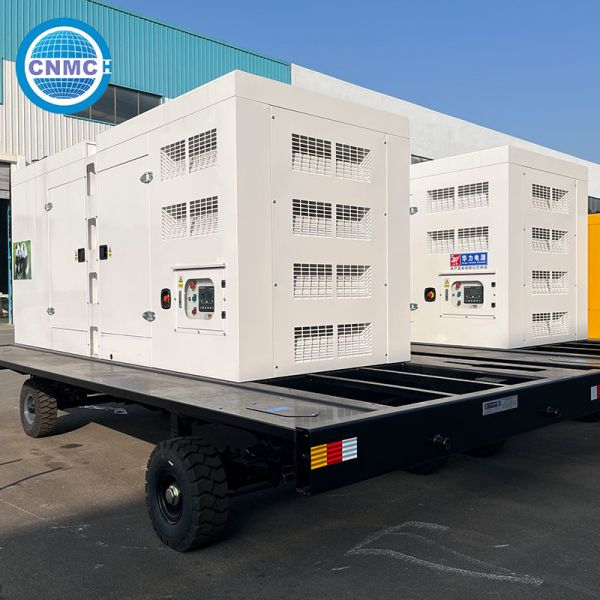

100KW Mobile Diesel Generator 3 Phase Air Cooled Electric

Name: 100KW Mobile Diesel Generator 3 Phase Air Cooled Electric
Brand: CNMC
Price: 2500 USD

Quality 100KW Mobile Diesel Generator 3 Phase Air Cooled Electric for sale

Brand Name : CNMC

Model Number : CN125GF

Certification : CE/EAP/ISO

Place of Origin : China

MOQ : 1 set

Price : USD 2500-3000/set

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per week

Delivery Time : 7 days

Packaging Details : wooden case packing

Color : Customers' Request

Control panel : LCD Digital Display

Cooling Method : Air Cooled

Dimensions : 800*500*600mm

Engine Type : Single Cylinder, 4-Stroke, Air-Cooled

Fuel Tank Capacity : 12L

Fuel Type : Gasoline

Model : Trailer Type Generator

Noise Level : ≤85dB

Power Source : Electric

Rated Current : 13.6A

Rated Frequency : 50Hz

Rated Power : 3KW

Rated Speed : 3000r/min

Starting Method : Electric Start

Voltage : 220V

Weight : 90kg

Contact Now

Good Performance 100KW Trailer Diesel Generator Silent 3 Phase Diesel Generator

Main Assemblies:

1, Diesel Engine (Cummins Brand)
2, Generator/Alternator (With AVR)
3, Standard Control Panel (Ordinary Type, LCD Type, ATS Type )
4, Common Base with Canopy(Including Base Oil Tank)

Standard Accessories:

1, Starting Battery and Connector Wire
2, The Vibration Reduction Rubber Gasket
3, Silencer
4, Exhaust Elbow
5, 8-hour Oil Tank
6, Spare Part Case
7, Technical Data
8, Water Tank Radiator,The belt-driving Cooling Fan ,Fan Safety Shield
9, Dry-type Air Filter
10, Fuel Filter
11, Lubricating Oil Filter
12, Starting Motor
13, Self-charging Generator
14, Frequency Meter/Water-thermometer/Oil Pressure Gauge/Battery Voltmeter

Optional Accessories:

1, Preheating Start System
2, Diesel Engine Thermal Protection System
3, Jacket Heater
4, Speeding, High Temperature, High Oil Temperature, Low Pressure Alarm System
5, Breaker
6, Antifreeze Liquid
7, Ground Wire
8, Water Temperature Safety Device
9, Machine Oil

Service Conditions:

-- Ambient Temperature: -25°C~40°C
-- Altitude: not exceed 1000 Meter
-- Rated Voltage: 230/380V or any voltage between 220-440V
-- Rated Frequency: 50Hz/60Hz
-- Insulation Class: B/F/H
-- Working Duty: S1(Continuous)
-- Humidity: Lower than 95%

MODEL			CN100GF
Power Pf.0.8	Standby	kVA	125
	Standby	kW	100
	Prime	kVA	115
	Prime	kW	92
	Frequency	Hz	50
	Voltage	V	230/400
	Rated speed	rpm	1500

Standard Features

CNMC Power provides one-source responsibility for the generating system and accessories.

The generator set and its components are prototype-tested, factory- built, and production-tested.

The 50Hz generator set offers a AUS 2012 listing and CE 2015 listing.

The generator set complies with ISO 8528-5, Class G3 requirements for transient performance.

The generator set accepts rated load in one step.

The 50Hz generator set engine is certified by the Environmental Protection Agency (EU or MEP) to conform to EU2,EU3 nonroad emissions regulations.(≤560KW)

A one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available.

Generator Features

The brushless, rotating-field generator has broadrange

See controller features inside.

The low coolant level shutdown prevents overheating (standard on radiator models only)

Integral vibration isolation eliminates the need for under-unit vibration spring isolators

An electronic, isochronous governor delivers precise frequency regulation.

Electronic engine controls and a generator microprocessor controller combine to deliver one of the most advanced control systems in today’s generator market.
